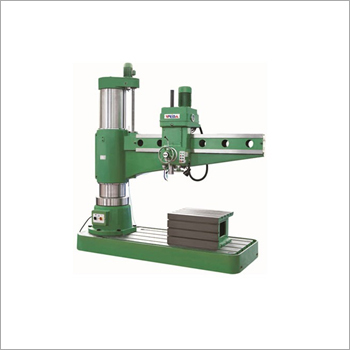

Radial Drilling Machine Z3040 x 13

Radial Drilling Machine Z3040 x 13

615000 INR/Unit

Product Details:

  • Condition New
  • Product Type Radial Drilling Machine
  • Material Metal
  • Automatic Grade Automatic
  • Power Source Electric
  • Supply Ability : 30 Unit Per Month
  • Click to view more
X

Price And Quantity

  • Any Order Unit
  • 615000 INR/Unit

Product Specifications

  • Electric
  • Radial Drilling Machine
  • Automatic
  • Metal
  • New

Trade Information

  • Cash Advance (CA)
  • 30 Unit Per Month
  • 15 Days
  • All India

Product Description

Distance Spindle axis and column300-1300mm
Range of Spindle Feed0.10-1.25mm/r
Number of Spindle Feed8 step
Table Size600x450x450mm
Distance of Horizontal Movment1000mm
Spindle Motor Power3kw
Machine Weight2500kg
Distance Spindle nose and working surface on base300-1120mm
Spindle TaperMT 4
Range of Spindle Speed32-2500rpm
Number of Spindle Speed16 step
Spindle Travel280mm
Drilling Diameter (in mm)40 mm
ModelZ3040 x 13
Power Consumption (in Watt)3kw
Item Weight (in Kgs)2500kg

The machine is with mechanical clamping system

The spindle is automatically feed as well as micro feed

Arm can swivel +/-180 degrees

The machine is mainly used to machining holes, such as drilling, reaming and Chambering etc.

Electrical, Machine Lamp, Coolant System, Foundation Bolt, Tool Box & Instruction Manual
